Hex Mesh

Hex Mesh

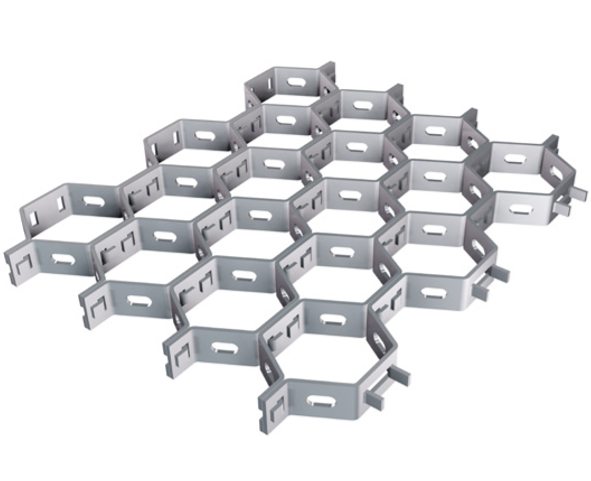

VICO-Still is the hexagonal mesh.

It is used for armouring and retaining abrasion and acid-resistant linings as well as heat insulating linings applied to vessels, FCC units, cyclones and furnaces.

VICO-Still panels are made of formed steel strips with protruding prongs clamped in such a way as to guarantee high rigidity of the panel also after rolling.

VICO-Still hexagonal mesh panels can be supplied either flat or cut to size and rolled; after rolling, they can easily fit inside vessel walls and provide perfect continuity of the refractory lining, even with very narrow radii of as small as 6”. Standard flat size panels 2000x1000 mm (PxT) in AISI 304H, AISI 410S and AISI 310S are available in stock.

On request we can supply, at a reasonable short notice, VICO-Still hexagonal mesh panels in other dimensions and materials.

For any additonal enquires, please contact us on one of the following contact methods on this page.
